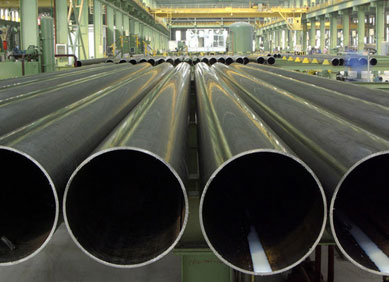

Alloy Steel a335 P11 Chrome Moly Alloy pipe

MD Exports LLP Specialist in Alloy Steel a335 P11 Chrome Moly Alloy pipe., Pipes Tubes are manufactured using superior grade of Alloy Steel like Alloy Steel A335 Pipe, Alloy Steel A335 P11 Pipe, Alloy Steel A335 P22 Pipe, Alloy Steel A335 P5 Pipe, Alloy Steel A335 P9 Pipe, Alloy Steel A335 P91 Pipe, Alloy Steel A335 P92 Pipe, Alloy Steel, ASTM A213 T11, ASTM A213 T22, ASTM A213 T5, ASTM A213 T9, ASTM A213 T91, ASTM A213 T92 Tube Tubing, These Tubing are most durable and manufactures to fit in different size of Pipes. Engineers & World's Best Project Consultants use these Alloy Steel ASTM A213 Tube Tubing and Alloy Steel A335 Pipe in Machined Components, MD Exports LLP Specialized Alloy Steel a335 P11 Chrome Moly Alloy pipe & supplying to Government sector companies since 2 decades, we are approved vendor of Alloy Steel a335 P11 Chrome Moly Alloy pipe in top notch government sector companies like ONGC, Indian Oil,NTPC,BHEL,ONGC,HPCL BPCL etc.we are also Saudi Aramco approved supplier of Alloy Steel a335 P11 Chrome Moly Alloy pipe, we have supplied Alloy Steel a335 P11 Chrome Moly Alloy pipe to companies involved in Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Steel and Alloy Steel Manufacturing, Utilities and Transportation, and Industrial Construction We Also Supply & Maintain huge stock of Other Grades of like Stainless Steel Pipe Tube, Alloy Steel Pipe Tube Tuberia, Inconel Pipe Tube Tubing, Monel Pipe Tube Tubing, Hastelloy Pipe Tube Tubing, Nickel Pipe Tube Tubing, Alloy Steel Pipe Tube Tubing Etc.

We stock approximately 1000 tonnes of high quality certified Alloy Steel a335 P11 Chrome Moly Alloy pipe in numerous sizes and materials which can be packed and shipped to any destination worldwide.

ASTM A335 Alloy Steel Seamless Pipes

This specification covers nominal wall and minimum wall seamless ferritic alloy-steel pipe intended for high temperature service. Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding

ASTM A335 GR P5 | GR P9 | GR P11 | GR P22 | GR P91.

Alloy Steel Seamless Pipes (IBR APPROVED)

Alloy Steel Seamless Pipes (IBR) offered by us is made of alloy steel and feature exceptional performance properties. These are developed for energy-related applications involving oil & gas drilling and therefore are subjected to stresses in machine parts. Further, Alloy Steel Tubes are also used in domestic, professional or industrial areas.

Alloy Steel Seamless Pipes (ASME SA335 Grade P5)
Alloy Steel Seamless Pipes (ASME SA335 Grade P5) offered by us are made available in ASME SA335 as well as P1, P5, P9, P11, P12, P91 grades. Our expertise lies in offering these in different sizes & schedules, with IBR & latest edition NACE MR 0175 reports.

Alloy Steel Pipes (ASTM A335 P11)
Alloy Steel Pipes (ASTM A335 P11) offered by us are made as per IBR standards and are used mainly for boiler operations. We source these seamless pipes in varied size range. Further, we can also get these customized as per boiler piping requirements. For ensuring in them optimum quality standards, we source these from quality manufacturers. We also offer clients of having their own mark on them.

Alloy Steel Pipes (ASTM A335 P12)
Alloy Steel Pipes (ASTM A335 P12) offered by us are available with ASTM A335 P12 standard and finds application in industries like Petrochemicals, Refineries, Fertilizers, Pharmaceuticals and others. We can source these seamless pipes in size range of up to 26 inches.

Alloy Seamless Pipes (ASTM A335 Grade P91 NACE)
Alloy Seamless Pipes (ASTM A335 Grade P91 NACE) offered by us are made available in ASTM A335 Grades. Made as per IBR standards, these are mainly used in boiler operations. Further, our expertise lies in offering these pipes in various size range as well as in customized parameters as per boiler piping requirements. Sourced from quality conscious manufacturers, we also offer our clients the option of adding their own mark on them.

Alloy Steel Tubes (ASME SA213 Grade T11)
Alloy Steel Tubes (ASME SA213 Grade T11) manufactured and supplied by us are of ASME SA213 Grade. Our expertise lies in offering these in various sizes as well as other specifications as per the required demands. These Alloy Steel Tubes find usage mainly in different industrial applications.

ASME Alloy Steel Seamless Tubes / Pipes (SA335 Grade P9)
ASME Alloy Steel Seamless Tubes / Pipes (SA335 Grade P9) manufactured, supplied and exported by us are used for various industrial applications. Our specialization in offering precision engineered alloy steels allow us to deliver these for various engineering applications in various grades like A-387 GR. P1, P5, P9, P11, P12, P22, P91, ASTM A-335 and others. The other specifications include:

ASTM A335 PIPES | ASTM A335 GR P5 PIPES | ASTM A335 GR P9 PIPES | ASTM A335 GR P11 PIPES | ASTM A335 GR P22 PIPES | ASTM A335 GR P91 PIPES
Size Range: 1/8" - 26"
Schedules: 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH

To find out more about our Alloy Steel a335 P11 Chrome Moly Alloy pipe, and get more information please fill enquiry form and one of our sales representatives will contact you.

Heat Treatment Requirements

	P5, P9, P11, and P22
Grade	Heat Treatment Type	Normalizing Temperature Range F [C]	Subcritical Annealing  or Tempering  Temperature Range F  [C]
P5 (b,c)	Full or Isothermal Anneal
	Normalize and Temper	*****	1250 [675]
	Subcritical Anneal (P5c only)	*****	1325 - 1375 [715 - 745]
P9	Full or Isothermal Anneal
	Normalize and Temper	*****	1250 [675]
P11	Full or Isothermal Anneal
	Normalize and Temper	*****	1200 [650]
P22	Full or Isothermal Anneal
	Normalize and Temper	*****	1250 [675]
P91	Normalize and Temper	1900-1975 [1040 - 1080]	1350-1470 [730 - 800]
	Quench and Temper	1900-1975 [1040 - 1080]	1350-1470 [730 - 800]

To find out more about our Alloy Steel a335 P11 Chrome Moly Alloy pipe, and get more information please fill enquiry form and one of our sales representatives will contact you.

Chemical Requirements

Grade			P-5	P-9	P-11	P-22	P-91	P-91 shall also include the following:
Element		UNS Designation	K41545	S50400	K11597	K21590	K91560
	Carbon		0.15 max	0.15 max	0.05 - 0.15	0.05 - 0.15	0.08 - 0.12	V at 0.18 - 0.25
	Manganese		0.30 - 0.60	0.30 - 0.60	0.30 - 0.60	0.30 - 0.60	0.30 - 0.60	N at 0.030 - 0.070
	Phosphorous, max		0.025	0.025	0.025	0.025	0.020	Ni at 0.40 max
	Sulfur, max		0.025	0.025	0.025	0.025	0.010	Al at 0.02 max
	Silicon		0.50 max	0.25 - 1.00	0.50 - 1.00	0.50 max	0.20 -0.50	Cb at 0.06 - 0.10
	Chromium		4.00 - 6.00	8.00 - 10.00	1.00 - 1.50	1.90 - 2.60	8.00 - 9.50	Ti at 0.01 max
	Molybdenum		0.45 -0.65	0.90 - 1.10	0.44 - 0.65	0.87 - 1.13	0.85 - 1.05	Zr at 0.01 max

To find out more about our Alloy Steel a335 P11 Chrome Moly Alloy pipe, and get more information please fill enquiry form and one of our sales representatives will contact you.
Tensile Requirements

	Seamless
	P-5	P-9	P-11	P-22	P-91	P91 shall not have a hardness not exceeding 250 HB/265 HV [25HRC].
Tensile Strength, min., psi
ksi	60	60	60	60	85
MPa	415	415	415	415	585
Yield Strength, min., psi
ksi	30	30	30	30	60
MPa	205	205	205	205	415

Permissible Variation in Wall Thickness

NPS [DN] Designator	Tolerance, % from Specified
	Over	Under
1/8 to 2 1/2 [6 to 65] incl., all t/D ratios	20.0%	12.5%
Above 2 1/2  [65], t/D < or = 5%	22.5%	12.5%
Above 2 1/2  [65], t/D > 5%	15.0%	12.5%
(t = Specified Wall Thickness; D = Specified Outside Diameter)

Elongation Requirements

Calculated Minimum Elongation Values
Elongation in 2 in. or 50 mm, min %
Wall Thickness		P5, P9, P11, P22			P91
in.	mm	Longitudinal		Transverse	Longitudinal
5/16 (0.312)	8		30	20	20
9/32 (0.281)	7.2		28	19	19
1/4 (0.250)	6.4		27	18	18
7/32 (0.219)	5.6		26		17
3/16 (0.188)	4.8		24		16
5/32 (0.156)	4		22		15
7/8 (0.125)	3.2		21		14
3/32 (0.094)	2.4		20		13
1/18 (0.062)	1.6		18		12

Permissible Variations in Outside Diameter
Outside Diameter at any point shall not vary from standard specified more than:

NPS [DN] Designator	Over		Under
	in.	mm	in.	mm
1/8 to 1 1/2 [6 to 40], incl.	1/64 (0.015)	0.40	1/64 (0.015)	0.40
Over 1 1/2 to 4 [40 to 100], incl.	1/32 (0.031)	0.79	1/32 (0.031)	0.79
Over 4 to 8 [100 to 200], incl.	1/16 (0.062)	1.59	1/32 (0.031)	0.79
Over 8 to 12 [200 to 300], incl.	3/32 (0.093)	2.38	1/32 (0.031)	0.79
Over 12 [300]	+/- 1% of the specified outside diameter

Mechanical Tests Specified

Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test
For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot.  For small lots, at least one pipe shall be tested.
For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.
Notes for Hardness Test:	P91 shall not have a hardness not exceeding 250 HB/265 HV [25HRC].
Notes for Bend Test:	For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test.
	Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser.
	The bend test specimens shall be bent at room temperature through 180 without cracking on the outside of the bent portion.
	The inside diameter of the bend shall be 1 inch [25 mm].
Hydrostatic Test	Each length of pipe shall be Hydro tested, at option of manufacture nondestructive electric testing can be used.

To find out more about our Alloy Steel a335 P11 Chrome Moly Alloy pipe, and get more information please fill enquiry form and one of our sales representatives will contact you.

A335 Grade P5, P9, P11, P22, P91 Alloy Steel Seamless Pipe and Tube Packing

A335 Grade P5, P9, P11, P22, P91 Alloy Steel Seamless Pipe and Tube is sleeved into plastic bag individually, pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

A335 Grade P5, P9, P11, P22, P91 Alloy Steel Seamless Pipe packing will be according to international standard in bundles strapped by strips then into containers to avoid any damage.

Delivery: Within 10-25 days or asap if we have enough stock

Types of Packaging:

- Bundles (hexagonal)
- Wooden Boxes
- Crates (steel/wooden)
- Special crates for U-Bend tubes with each radius separated
- Packaging for A335 Grade P5, P9, P11, P22, P91 Alloy Steel Seamless Pipe as per customer's requirements

Special Features:

- Each bundle covered with plastic for protection against extreme weather.
- End of A335 Grade P5, P9, P11, P22, P91 Alloy Steel Seamless Pipe protected by plastic caps.
- Bundles strapped with plastic strips.
- Each radius of U-Bend tube separated by a separator.
- Packaging list (laminated) placed with box/crate.

Schedule 20, Schedule 30, Schedule STD, Schedule 40, Schedule 60, Schedule 80, Schedule 100, Schedule 120, Schedule 160, Schedule XXS in ASTM A335 Grade P5, P9, P11, P22, P91 Alloy Steel Seamless Pipe and Tube
