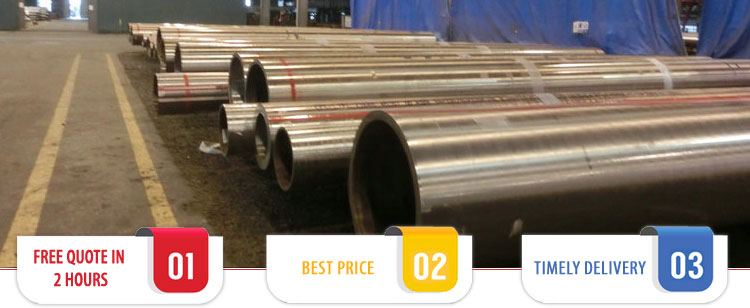

Alloy Steel a335 P22 Chrome Moly Alloy pipe

MD Exports LLP Specialist in Alloy Steel a335 P22 Chrome Moly Alloy pipe., Pipes Tubes are manufactured using superior grade of Alloy Steel like Alloy Steel A335 Pipe, Alloy Steel A335 P11 Pipe, Alloy Steel A335 P22 Pipe, Alloy Steel A335 P5 Pipe, Alloy Steel A335 P9 Pipe, Alloy Steel A335 P91 Pipe, Alloy Steel A335 P92 Pipe, Alloy Steel, ASTM A213 T11, ASTM A213 T22, ASTM A213 T5, ASTM A213 T9, ASTM A213 T91, ASTM A213 T92 Tube Tubing, These Tubing are most durable and manufactures to fit in different size of Pipes. Engineers & World's Best Project Consultants use these Alloy Steel ASTM A213 Tube Tubing and Alloy Steel A335 Pipe in Machined Components, MD Exports LLP Specialized Alloy Steel a335 P22 Chrome Moly Alloy pipe & supplying to Government sector companies since 2 decades, we are approved vendor of Alloy Steel a335 P22 Chrome Moly Alloy pipe in top notch government sector companies like ONGC, Indian Oil,NTPC,BHEL,ONGC,HPCL BPCL etc.we are also Saudi Aramco approved supplier of Alloy Steel a335 P22 Chrome Moly Alloy pipe, we have supplied Alloy Steel a335 P22 Chrome Moly Alloy pipe to companies involved in Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Steel and Alloy Steel Manufacturing, Utilities and Transportation, and Industrial Construction We Also Supply & Maintain huge stock of Other Grades of like Stainless Steel Pipe Tube, Alloy Steel Pipe Tube Tuberia, Inconel Pipe Tube Tubing, Monel Pipe Tube Tubing, Hastelloy Pipe Tube Tubing, Nickel Pipe Tube Tubing, Alloy Steel Pipe Tube Tubing Etc.

We stock approximately 1000 tonnes of high quality certified Alloy Steel a335 P22 Chrome Moly Alloy pipe in numerous sizes and materials which can be packed and shipped to any destination worldwide.

ASTM A335 P22 alloy steel pipe

ASTM A335 P22 is the part of ASTM A335, The pipe shall be suitable for bending, flanging, and similar forming operations, and for fusion welding. The steel material shall conform to chemical composition, tensile property, and hardness requirements.

Each length of pipe shall be subjected to the hydrostatic test. Also, each pipe shall be examined by a non-destructive examination method in accordance to the required practices.

The range of ASTM A335 P22 pipe sizes that may be examined by each method shall be subjected to the limitations in the scope of the respective practice.

The different mechanical test requirements for pipes, namely, transverse or longitudinal tension test, flattening test, and hardness or bend test are presented.Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

Outer Dimensions: 19.05mm – 114.3mm
Wall Thickness: 2.0mm – 14 mm
Length: max 16000mm

Steel grade: ASTM A335 P22

Packing:

Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

Surface treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

ASTM A335 P22 Chemical Compositions(%)

Mechanical properties for ASTM A335 P22

Material & Manufacture

Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.

Heat Treatment

A / N+T
N+T / Q+T
N+T

Mechanical Tests Specified

Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test
For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested.
For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.

Notes for Hardness Test:

P11 shall not have a hardness not exceeding 250 HB/265 HV [25HRC].

Notes for Bend Test:

For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test.
Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser.
The bend test specimens shall be bent at room temperature through 180 without cracking on the outside of the bent portion.

To find out more about our Alloy Steel a335 P22 Chrome Moly Alloy pipe, and get more information please fill enquiry form and one of our sales representatives will contact you.
