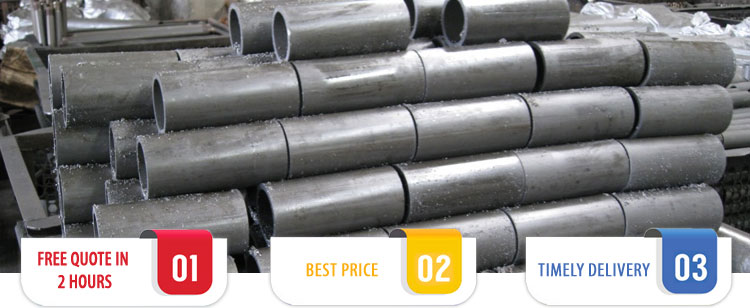

Drawn Over Mandrel DOM Tubes Tubing Tuberia Tubular in All Shapes and Sizes

MD Exports LLP Specialized in Drawn Over Mandrel DOM Tubes Tubing, which are manufactured using superior grade of steel like Stainless Steel 304,304L,310,310S,316,316L,317L. These Tubing are most durable and manufactures to fit in different size of Pipes. Engineers & World's Best Project Consultants use these stainless steel Tubing in Machined Components, MD Exports LLP manufacturing Drawn Over Mandrel DOM Tubes Tubing & supplying to Government sector companies since 2 decades,we are approved vendor of Drawn Over Mandrel DOM Tubes Tubing in top notch government sector companies like ONGC, Indian Oil,NTPC,BHEL,ONGC,HPCL BPCL etc.we are also Saudi Aramco approved supplier of Drawn Over Mandrel DOM Tubes Tubing, we have supplied Stainless Drawn Over Mandrel DOM Tubes Tubing to companies involved in Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Steel and Alloy Steel Manufacturing, Utilities and Transportation, and Industrial Construction We Also Supply & Maintain huge stock of Other Grades of Drawn Over Mandrel DOM Tubes Tubing like Stainless Steel, Alloy Steel Tuberia, Inconel Pipe Tube, Monel Pipe Tube, Hastelloy Pipe Tube, Nickel Pipe Tube, Alloy Steel Pipe Tube, Stainless Steel Seamless Pipes Tube Tubing Tuberia.

We stock approximately 1000 tonnes of high quality certified Drawn Over Mandrel DOM Tubes Tubing in numerous sizes and materials which can be packed and shipped to any destination worldwide.

Drawn-Over-Mandrel (DOM), Electric Resistance Welded (ERW)

In line with our reputation as a world supplier of tubing, at MD Exports LLP our mills manufacture high quality electric resistance welded tubing (ERW), which is further worked to produce drawn over mandrel (DOM) tubing for a range of industries and demanding applications. Our DOM tubing is created from flat sheets of raw material, rolled on a weld mill to produce mother hollow. A number of material options are available, including AISI class 1008, 1010, 1020, and 1026. The material is subjected to a normalizing heat treatment to produce suitable tube for cold working. Overhead cranes are employed to submerge parts into tanks for further processing including sulfuric acid cleaning, cold rinsing, and a lubrication bath to prevent material scratching and breaking during forming.

Our highly developed cold work drawing process uses a carbide die and mandrel to evenly reduce the I.D., O.D., and wall thicknesses, followed by a stress relieving process. The resultant DOM tubing possesses high dimensional accuracy and enhanced mechanical properties. Extremely straight tubes are generated with rotary straightening, and deburring is performed for smoothness and cleanliness. Parts are also treated with rust preventative coating. Tubes are cut to length, with approximately 1" - 2" removed from each end to achieve a 90° square cut. All DOM tubing is comprehensively tested and inspected with numerous procedures to ensure accuracy and integrity most notably Eddy Current testing methods to confirm no cracking, holes, splits, splintering, or chatter; 100% dimensional testing for ID, OD, and wall thicknesses; straightness testing; and cosmetic quality checks to rule out rust, dirt, and grease marring. Total pieces and footage per bundle is also verified. All tubes are precision stenciled, if required, with material type, producing mill, size, and heat number along with customer required information. Products are available in custom and irregular sizes and specialized finishes, according to customer specifications. For more details about our cost effective ERW and DOM tubing options, and other value added capabilities please see the table below or contact us directly.

To find out more about our Drawn Over Mandrel DOM Tubes Tubing, and get more information please fill enquiry form and one of our sales representatives will contact you.

Drawn-Over-Mandrel (DOM), Electric Resistance Welded (ERW) Project Highlights

DOM TUBING (DRAWN OVER MANDREL)

Gautam stocks a full range of DOM carbon tubing sizes. Our DOM (Drawn Over Mandrel) tubing is produced in carbon grades 1020-1026 to the ASTM A513 Type 5 specification. In addition, we can special-order a wide variety of non-standard sizes.

DOM TUBING APPLICATIONS:

Automotive applications
Industrial and construction equipment

Advantages:

DOM is a preferred choice for a wide range of mechanical tubing applications because it combines the advantages of closely controlled dimensions (OD/ID/Wall), superior concentricity, and a uniform wall thickness. In addition, DOM offers smooth OD and ID surfaces, high mechanical properties, and excellent machinability.

To find out more about our Drawn Over Mandrel DOM Tubes Tubing, and get more information please fill enquiry form and one of our sales representatives will contact you.
