Sandvik Composite Tube Distributors
ISO 9001:2008 Certified Company ( 37 Years Old ) MD Exports LLP is No. 1 Distributor and Dealer of Composite Tube

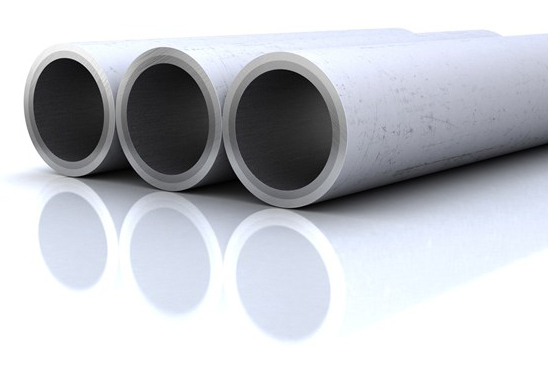

Sandvik Composite tube (compound tube)
Composite tube (compound tube) suitable for applications where the conditions outside and inside the tube require material properties that cannot be met by one material only.
The composite tube consists of two different alloys metallurgically bonded together to achieve good thermal transfer properties. One alloy is used to withstand corrosion, while the other often is an approved pressure vessel material.
Typical applications for Sandvik composite tubes are steam boilers with corrosive conditions, such as:
Black liquor recovery boilers (BLRB)
Syngas coolers
Waste heat boilers
Waste-to-energy boilers
Sandvik composite tubes have been installed in more than 400 boiler units worldwide since the 1970s. Contact us for references.
| Corrosion resistant alloy | ||||
| Sanicro 67 | N06690 | - | 2.4642 | - |
| Sanicro 38 | N08825 Mod. | - | 2.4858 | - |
| Sanicro 30 | N08800 | - | 1.4558 | - |
| Sanicro 28 | N08028 | - | 1.4563 | X1NiCrMoCu31-27-4 |
| Sandvik 3RE28 | - | 310 | 1.4845* | - |
| Sandvik 3R12 | S30403/ S30400 |
304L | 1.4306 | - |
| Load carrying alloy | ||||
| 4L7 | - | SA210-A1 | 1.0425 | ST45.8/lll |
| 3Mo1 | - | - | 1.5415 | 16Mo3 |
| HT5 | - | SA213-T12 | 1.7335 | 13CrMo4-5 |
| HT8 | - | SA213-T22 | 1.7380 | 10CrMo910 |
| HT7 | - | SA213-T91 | 1.4903 | X10CrMoVNb91 |
* According to EN 10095, valid for heat resistant grades in the form of sheet/plate, strip, semi-finished products, bar, rod and sections (not for pressure or creep purposes).
| Outside diameter | Total minimum wall thickness |
Thickness outer layer |
Minimum thickness inner layer |
||||
|---|---|---|---|---|---|---|---|
| mm | in. | mm | in. | mm | in. | mm | in. |
| 38.0 | 1 1/2 | 5.00 | 0.197 | 1.30 | 0.051 | 3.70 | 0.146 |
| 50.8 | 2 | 5.08 | 0.200 | 1.50 | 0.059 | 3.58 | 0.141 |
| 63.5 | 2 1/2 | 6.53 | 0.257 | 1.65 | 0.065 | 4.88 | 0.192 |
| 76.2 | 3 | 6.58 | 0.259 | 1.65 | 0.065 | 4.93 | 0.194 |
For More Details Plz. Visit Us : : http://www.smt.sandvik.com/
Sandvik Tube and pipe products A-Z
To find out more about our Composite Tube, and get more information please fill enquiry form and one of our sales representatives will contact you.
