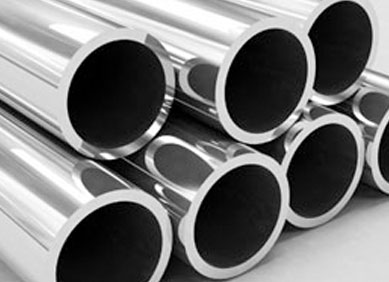

Inconel Alloy 625 Pipe

MD Exports LLP Specialist in Inconel Alloy 625 Pipe., Pipes Tubes are manufactured using superior grade of Inconel like Alloy 600 Pipe, Alloy 601 Pipe, Alloy 625 Pipe, Incoloy 800 Pipe, Incoloy 825 Pipe, Alloy 718 Pipe, Inconel X-750 Pipe, These Tubing are most durable and manufactures to fit in different size of Pipes. Engineers & World's Best Project Consultants use these Inconel Pipe in Machined Components, MD Exports LLP Specialized Inconel Alloy 625 Pipe & supplying to Government sector companies since 2 decades,we are approved vendor of Inconel Alloy 625 Pipe in top notch government sector companies like ONGC, Indian Oil,NTPC,BHEL,ONGC,HPCL BPCL etc.we are also Saudi Aramco approved supplier of Inconel Alloy 625 Pipe, we have supplied Inconel Alloy 625 Pipe to companies involved in Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Steel and Alloy Steel Manufacturing, Utilities and Transportation, and Industrial Construction

We stock approximately 1000 tonnes of high quality certified Inconel Alloy 625 Pipe in numerous sizes and materials which can be packed and shipped to any destination worldwide., We provide Inconel Alloy 625 Pipe in all shapes and sizes and with any specifications that the clients || MD Exports LLP Specialized in Inconel Alloy 625 Pipe in India, Ready Stock Available in Inconel Alloy 625 Pipe in Mumbai India.

INCONEL 625 TECHNICAL DATA

Type Analysis | Description | Corrosion Resistance | Pickling | Physical Properties | Mechanical Properties | Heat Treatment | Workability

Type Analysis

Description

Alloy 625 is a nonmagnetic , corrosion - and oxidation-resistant, nickel-based alloy. Its outstanding strength and toughness in the temperature range cryogenic to 2000°F (1093°C) are derived primarily from the solid solution effects of the refractory metals, columbium and molybdenum, in a nickel-chromium matrix. The alloy has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions. Some typical applications for alloy 625 have included heat shields, furnace hardware, gas turbine engine ducting, combustion liners and spray bars, chemical plant hardware, and special seawater applications.

Corrosion Resistance

Alloy 625 has withstood many corrosive environments. In alkaline, salt water, fresh water, neutral salts, and in the air, almost no attack occurs. The nickel and chromium provide resistance to oxidizing environments. Nickel and molybdenum provide for resistance to nonoxidizing atmospheres. Pitting and crevice corrosion are prevented by molybdenum. Niobium stabilizes the alloy against sensitization during welding. Chloride stress-corrosion cracking resistance is excellent. The alloy resists scaling and oxidation at high temperatures.

Pickling

Sodium hydride baths are necessary to descale this alloy. After the sodium hydride treatment, the material should be immersed in a sulfuric acid bath 165°F (74°C) for approximately 3 minutes. A 25-minute immersion in a nitric-hydrofluoric bath 145°F (63°C) is then necessary. Rinse. Sulfuric solution: 16% by weight, H2SO4. Nitric solution: 8% HNO3 by weight and 3% HF by weight. Acid etching for macro-inspection-expose material electrolytically to a 3-to-1 HCl to HNO3 solution, saturated with CuCl 2 at a current density of 0.645 amp/in² (25.4 A/m)

Physical Properties

Average Dynamic Modulus of Elasticity *

* Average of five tests at each temperature.

Mechanical Properties

Average Impact Strength, Plate *

*Average of four tests on 1/2-in. (12.7mm) plate from a single heat.
**1875F (1024C), rapid cooled.

Average Hardness and Tensile Data, Room Temperature

*Based on average of 146 tests
**Based on average of 67 tests.
***Based on average of 4 or less tests.

Aged Hardness, Room Temperature*

*Single tests from a single heat.
**1875F (1024C), rapid cooled.

Average Tensile Data, Room Temperature*

*Average of three tests from a single heat.
**1875F (1024C), rapid cooled.

Average Tensile Data, Sheet*

*Annealed at 1925°F (1052°C), rapid cooled.

Average Rupture Data, Sheet*

*Annealed at 1925°F (1052°C), rapid cooled.
**Extrapolated

Heat Treatment

Alloy 625 has three basic heat treatments:
(1)High Solution Anneal - 2000/2200°F (1093/1204°C), air quench or faster.
(2)Low Solution Anneal - 1700/1900°F (927/1038°C), air quench or faster.
(3)Stress Relieve - 1650°F (899°C), air quench.
The time at the above temperatures depends on volume and section thickness. Strip, for example, would require shorter times than large sections. Temperatures for treatments No. 1 and 2 are generally held for 1/2 to 1 hour, 1 to 4 hours for treatment No. 3.
Treatment No. 1 is not commonly used for applications below 1500°F (816°C). It is generally used above 1500°F and where resistance to creep is important. The high solution anneal is also used to develop the maximum softness for mild processing operations such as cold rolling or drawing.
Treatment No. 2 is the used treatment and develops an optimum combination of tensile and rupture properties from ambient temperatures to 1900°F (1038°C). Ductility and toughness at cryogenic temperatures are also very good.
Treatment No. 3 is recommended for application below 1200°F (649°C) when maximum fatigue, hardness, tensile and yield strength properties are desired. Ductility and toughness at cryogenic temperatures are excellent. When a fine grain size is desired for fatigue, tensile and yield strengths up to 1500°F (816°C), treatment No. 3 is sometimes used.

Workability

Hot Working
Hot working may done at 2100°F (1149°C) maximum furnace temperature. Care should be exercised to avoid frictional heat build-up which can result in overheating, exceeding 2100°F (1149°C). Alloy 625 becomes very stiff at temperatures below 1850°F (1010°C). Work pieces that fall below this temperature should be reheated. Uniform reductions are recommended to avoid the formation of a duplex grain structure. Approximately 15/20% reduction is recommended for finishing.

Cold Forming
Alloy 625 can be cold formed by standards methods. When the material becomes too stiff from cold working, ductility can be restored by process anneal.

Machineability
Low cutting speeds, rigid tools and work piece, heavy equipment, ample coolant and positive feeds are general recommendations.

High-Speed Cutting Tools for Lathe Turning Operations

Cutting Speeds for High-Speed Steels

Carbide tools should have smaller angles than high-speed tools and operating speeds can be higher. A sulfur-based cutting fluid is recommended. Thoroughly clean work piece after machining to prevent surface contamination during subsequent heat treating. Chlorine additives would be an alternative.

Weldability
Welding can be accomplished by the gas-shielded processes using a tungsten electrode or a consumable electrode. Postweld heat treatment of the weld are not necessary to maintain corrosion resistance. Heavy restrained sections can be welded and the weld's mechanical properties follow the same trends as base metal properties. Standard practices such as clean surfaces, good joint alignment, U-joints for thicker sections, etc., should be followed.

To find out more about our Inconel Alloy 625 Pipe, and get more information please fill enquiry form and one of our sales representatives will contact you.

INCONEL® and INCOLOY® are registered trademarks of Special Metals (PCC) ( Special Metals Inconel 625 Pdf )
