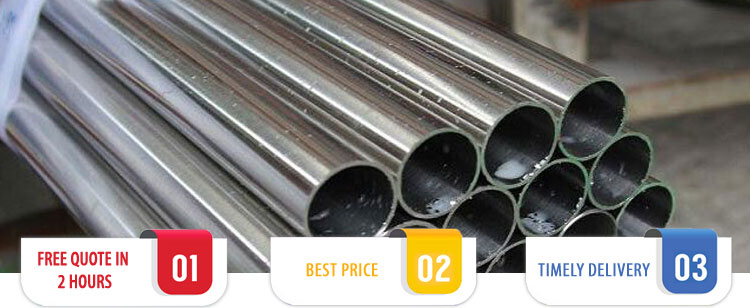

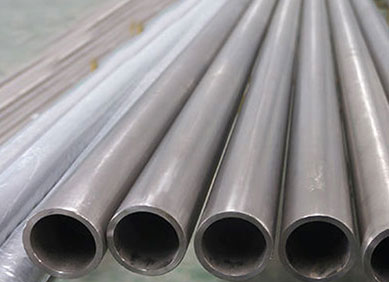

MD Exports LLP Specialist in Inconel Alloy X-750 Pipe., Pipes Tubes are manufactured using superior grade of Inconel like Alloy 600 Pipe, Alloy 601 Pipe, Alloy 625 Pipe, Incoloy 800 Pipe, Incoloy 825 Pipe, Alloy 718 Pipe, Inconel X-750 Pipe, These Tubing are most durable and manufactures to fit in different size of Pipes. Engineers & World's Best Project Consultants use these Inconel Pipe in Machined Components, MD Exports LLP Specialized Inconel Alloy X-750 Pipe & supplying to Government sector companies since 2 decades,we are approved vendor of Inconel Alloy X-750 Pipe in top notch government sector companies like ONGC, Indian Oil,NTPC,BHEL,ONGC,HPCL BPCL etc.we are also Saudi Aramco approved supplier of Inconel Alloy X-750 Pipe, we have supplied Inconel Alloy X-750 Pipe to companies involved in Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Steel and Alloy Steel Manufacturing, Utilities and Transportation, and Industrial Construction We Also Supply & Maintain huge stock of Other Grades of like Stainless Steel Pipe Tube, Alloy Steel Pipe Tube Tuberia, Inconel Pipe Tube Tubing, Monel Pipe Tube Tubing, Hastelloy Pipe Tube Tubing, Nickel Pipe Tube Tubing, Alloy Steel Pipe Tube Tubing Etc.

We stock approximately 1000 tonnes of high quality certified Inconel Alloy X-750 Pipe in numerous sizes and materials which can be packed and shipped to any destination worldwide., We provide Inconel Alloy X-750 Pipe in all shapes and sizes and with any specifications that the clients || MD Exports LLP Specialized in Inconel Alloy X-750 Pipe in India, Ready Stock Available in Inconel Alloy X-750 Pipe in Mumbai India.

INCONEL® X-750, UNS N07750

Nickel X750 Strip, Coil, Foil, Wire, AMS 5542, AMS 5598, MIL-N-7786

Applications

Bellows, gas turbine, rotor blades, springs, fasteners.

Alloy X750 Description

Alloy X750 is a nickel-chromium alloy made precipitation-hardenable by the additions of Titanium and Aluminum, having high creep-rupture strength at high temperatures to about 130.0°F (700°C). It also has excellent properties down to crypgenic temperatures. Excellent corrosion and oxidation resistance and high strength at temperatures up to 1300°F

Chemistry Typical

Nickel + Cobalt: 70.00 min
Chromium: 14.0-17.0
Iron: 5.0-9.0
Titanium: 2.25-2.75
Aluminum: 0.40-1.00
Columbium + Tantalum: 0.70-1.20
Manganese: 1.00 max.
Silicon: 0.50 max.
Sulfur: 0.01 max.
Copper: 0.50 max.
Carbon: 0.08 max.
Cobalt: 1.00 max

Physical Properties

Density: 0.299 lbs/in³ , 8.28 g/cm³

Mean Coefficient of Thermal Expansion: in/in/°F (mm/m/°C):
70- 212°F (20- 100°C) 7.0 x 10-6 (12.0)

Modulus of Elasticity: ksi (MPa)
31.0 x 10³(213.7 x 10³) in tension
11.0 X 10³ (75.8 x 10³) in torsion

Melting Point: 2540-2600°F (1393-1427°C)

Forms

Coil – Strip, Foil, Ribbon
Wire – Profile, Round, Flat, Square

Mechanical Properties at Room Temperature

Annealed Typical
Ultimate Tensile Strength
135 KSI max (930 MPa): gauges < 0.040 inches
145 KSI max (10000 MPa): gauges 0.040- 0.060 inches
150KSI max (1034 MPa): gauges > 0.060 inches
Elongation: 20% min

Tempered
Inconel X 750 can be cold rolled to various tempers. Contact MD Exports LLP for additional information

Heat Treatment
Inconel X750 can be heat treated. Contact MD Exports LLP for additional information

Additional Properties

Corrosion Resistance
Refer to NACE (National Association of Corrosion Engineers)for recommendations.

Finishes
#1–Hot rolled annealed and descaled. It is available in strip, foil and ribbon. It is used for applications where a smooth decorative finish is not required.
#2D–Dull finish produced by cold rolling, annealing and descaling. Used for deep drawn parts and those parts that need to retain lubricants in the forming process.
#2B–Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished rolls giving it a brighter finish than 2D.
#BA-Bright annealed cold rolled and bright annealed
#CBA-Course bright annealed cold rolled matte finish and bright anneal
#2-Cold Rolled
#2BA–Smooth finish produced by cold rolling and bright annealing. A light pass using highly polished rolls produces a glossy finish. A 2BA finish may be used for lightly formed applications where a glossy finish is desired in the formed part.
Polished-Various grit finish for specific polish finished requirements

* Not all finishes are available for all alloys – Contact MD Exports LLP Sales for more information

Wire Finishes
XC-Extra clean. Bright annealed or bright annealed and cold rolled
Grease-Ultra bright finish for decorative applications
Soap-Soap is not removed from tempered wire to act as a lubricant.

* Contact MD Exports LLP Wire for custom wire finishes

Heat Treatment
Inconel X750 can be hardened by:
Cold Working
Age Hardening
Cold Working followed by Age Hardening

Welding
For best results refer to: SSINA’s “Welding of Stainless Steels and Other Joining Methods”

Inconel® X750 is a registered trademark of Special Metals Corp

To find out more about our Inconel Alloy X-750 Pipe, and get more information please fill enquiry form and one of our sales representatives will contact you.
